New

CD300TBR2500

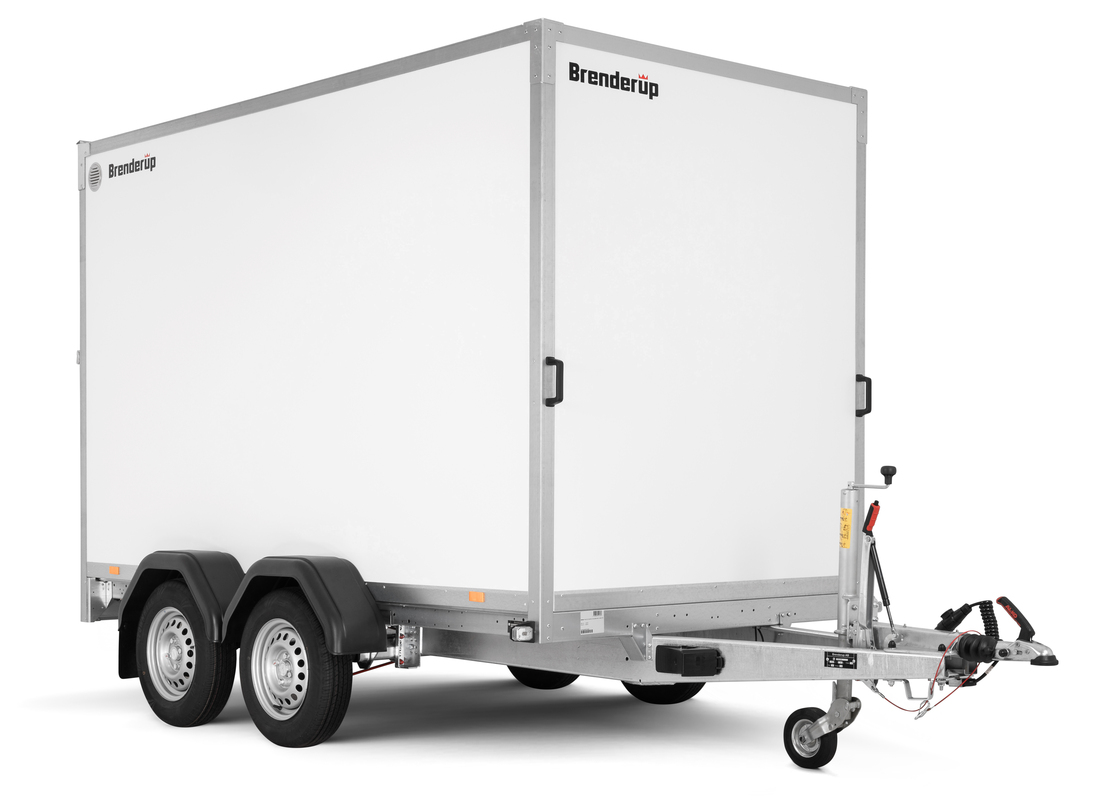

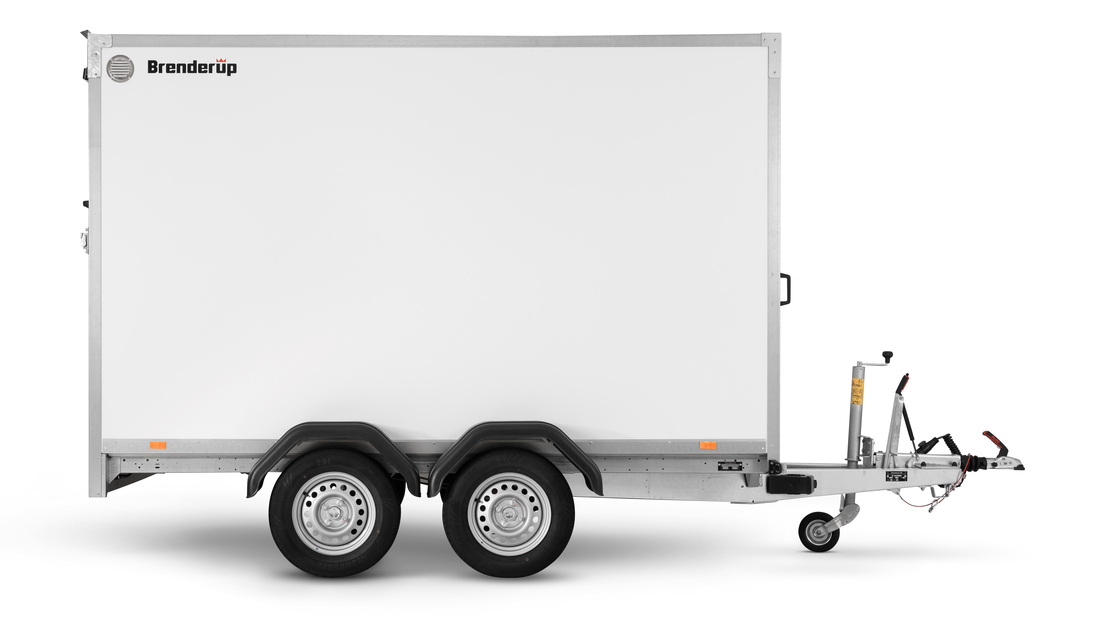

Cargo Dynamic™ a modern lightweight trailer designed for professionals and electric cars.

  1. Improved loading weight
  2. Surface for custom folio/stickers
  3. Lightweight ramp with improved anti slip pattern
  4. Ventilation to avoid condensation
The CargoDynamic™serietrailers are designed for professional users and electric cars who want a lightweight trailer able to cover and protect their goods. The trailer offers a high load capacity. The design of the trailer give the possibility of full profiling on all sides of the trailer, fully utilizing the trailers full advertising potential. Built with a modern low-weight, impact resistiance, non organic and waterproof honeycomb material. With a variety of sizes available equipped with doors or ramp, the CargoDynamic™is a highly flexible trailer. Images are for illustrative purposes only and may show optional equipment.

Features and benefits

Door or ramp

Models available with door or with ramp

Water resistance

Use of maintenance free, non organic material, give increased lifetime of the trailer.

Suitable for electric cars

Designed for electric cars using low weight modern material and construction.

Interior LED light

Interior LED light as standard equipment. Give good work light inside trailer.

Honeycomb construction

Extremely strong and light weight board material with honeycomb construction.

Brake Light

An extra brake light placed high on trailer for extra attention in traffic.

High load capacity

Low weight board material give higher load capacity.

Semi transparent

The board material is semi transparent make the inside not dark in daylight.

Impact resistance

Impact resistant board material make it more durable from falling gods inside the trailer compared to other board materials.

Ventilation

Avoid condensation inside the trailer.

Honeycomb construction

Extremely strong and light weight board material with honeycomb construction.

Internal lashing eyes

Internal lashing eyes which easily helps you to secure your load

Handles in the front

Two handles in the front for easier handling of the trailer.

Prepared for decals

Prepared for profiling on all four sides of the trailer as well as the roof.

Specifications Accessories Features and benefits

Specifications

CD300TBR2500
Article number 315218
Gross weight (kg) ? 2500
Load (kg) ? 1950
Unladen weight (kg) 550
Int dimensions (cm) ? 300x155x185
Ext dimensions (cm) ? 450x203x242
Loading height (mm) 540
Type of sidepanel Honeycomb
Loading type Ramp
Brakes Yes
Number of axels 2
Coupling Steel sheet
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes
Internal lashing eyes 8

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Lashing eye kit

    Lashing eye-kit of 4 pcs. For CD cargo.
    Art nr315644

  • Propstand kit

    Contains support (112278), clamping bracket (101415) and mounting brackets.
    Art nr312739

  • Alu X10 195/70R14 (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg, mounted on trailer
    Art nr316170M

  • Side door (mount.)

    Kit to make door on side. The door are made of the material that is removed from the side. Size 600x1600mm for 7000, CD with height 1850mm. Mounted on trailer
    Art nr304895M

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

  • Propstand kit (mount.)

    For Series 2000. Contains support (112278), clamping bracket (101415) and mounting brackets. Mounted on S2000 trailer
    Art nr312739M

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Propstand kit 7000

    Fits series 7000. You also need to order longer door holders (115434) - applies only if you buy support legs for cabinets with doors on S-7000
    Art nr101571
