Phase out
1150SUB602
Features and benefits
Cover buttons
The trailer is prepared for flat and high covers, attachment for covers pre-assembled
Foldable back panel
Foldable back panel to easier load the trailer and also enable you to transport longer goods.
Strong side panel
Firm sidepanel which increases the stability of the trailer
Strong side locks
High quality side locks which firmly locks the panels
Internal lashing eyes
Internal lashing eyes which easily helps you to secure your load
Foldable drawbar/Upright storage
Space saving which allows you to store your trailer in a garage or against a wall. Don't forget to secure your trailer if you store in an upright position.
Specifications
| 1150SUB602 | |
| Article number | 313141 |
| Gross weight (kg) ? | 600 |
| Load (kg) ? | 500 |
| Unladen weight (kg) | 600 |
| Int dimensions (cm) ? | 144x94x35 |
| Ext dimensions (cm) ? | 239x137x84 |
| Loading height (mm) | 545 |
| Type of sidepanel | Steel |
| Foldable back panel | Yes |
| Foldable front panel | No |
| Foldable side panels | No |

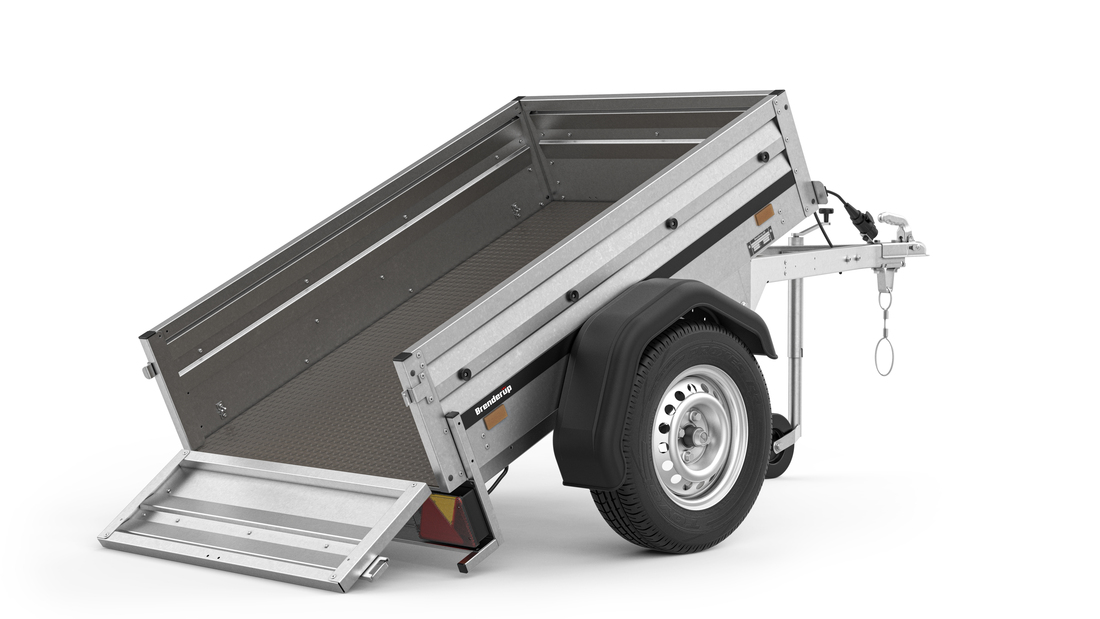

| Tip | Yes |
| Type of tip | Manual |
| Brakes | No |
| Number of axels | 1 |
| Tyre dimension | 145/80R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Plug connection type ? | Straight |
| Adaptercable | 13 |
| Jockey wheel | No |
| Coupling | Steel sheet |
| Internal lashing eyes | 4 |
| Premounted cover buttons | Yes |
